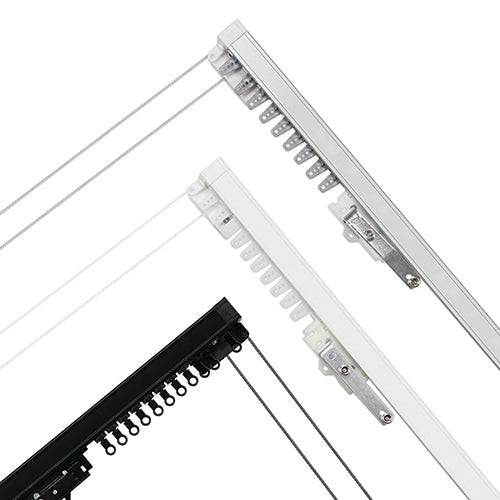

Kirsch Architrac 94001 Rod
Selection Guide
The Step-by-Step Guidelines below correspond to the various product options in each drop-down.
- 1. Rod Width: Rod Width is the finished width of your Kirsch Architrac Rod. We do not make any additions or subtractions to the Rod Width you select; your Rod will be the exact width specified by you. Please note that if you are installing your Kirsch Architrac Rod as an Inside Mount (wall to wall, for example), you will need to make a deduction so that the Rod is not the exact same width as the opening. Our recommendation is to deduct 1/2".
-
2. Carrier Style: Kirsch Architrac Rods can be manufactured for Pinch Pleat Draperies or Ripplefold Draperies. Pinch Pleat Draperies are attached to the Rod with Drapery Pins. If you have Pinch Pleat Draperies, select the Pinch Pleat Carrier Style. If you are selecting Ripplefold Carriers:
- a. Ripplefold Fullness: Ripplefold Draperies are attached to the Rod via Ripplefold Snap Tape. Snap Tape is sewn onto the Drapery Panels at the time the Drapery Panels are fabricated. Kirsch Architrac Rods can be fabricated with Ripplefold Snap Carriers to match Ripplefold Fullness of 60%, 80%, 100%, and 120%. The amount of Ripplefold Fullness selected for your Kirsch Architrac Rod must match the fullness of your Ripplefold Drapery panels.
-
b. Ripplefold Master Slides: In addition to Ripplefold Fullness, you must choose Master Slide Style:
- i. Overlap Master Slides allow the fabric to 'overlap' in the center (Viewed from above):
-
- ii. Butt Master Slides allow the fabric to 'butt' in the center (Viewed from above):
-
-
3. Draw/Stack: 'Draw' or 'Stack' refers to how your Drapery Panels operate. You have three options:
- a. Center-Open/Split Draw: A pair of drapery panels "meet" in the center of the Track when the panels are drawn and are "stacked" at each side of the Track when the panels are returned.
- b. One-Way Left Draw: The Track opens and closes a single panel from the left side of the Track.
- c. One-Way Right Draw: The Track opens and closes a single panel from the right side of the Track.
-
4. Optional Motorization: Architrac Series 94001 Rods can be ordered with either Cord Draw or AMP Motorization
- a. Cord Draw: A selection of 'Cord Draw-No Motorization' means that your Architrac Rod will be controlled by a cord. With this selection, choose Cord Position (Right or Left) and Cord Drop (6 feet to 18 feet). Cord Drop is determined based on how high your Rod is above the floor. Cord Drop should be ordered slightly longer than you need. At the time of installation the cord is then shortened to the exact length
- b. AMP Motorization: With AMP Motorization select whether you prefer the motor to be on the right or left side of the rod. For a one-way draw drapery, you will want the motor to be on the same side that your drapery 'stacks' to. This way, the motor is always hidden behind the drapery fabric. Once you select Motor Position, select the type of AMP Controller you prefer; a Handheld Controller, a Wall Mount Controller, or No Controller. No Controller is selected in cases where you are ordering multiple rods and have already selected a Controller, or if you already have a controller.
-
5. Brackets: Kirsch Architrac rods can be 'wall' or 'ceiling' mounted. The number of brackets supplied with your rod will be determined by us, based upon the width of the rod you select. For a Ceiling Mount, select Ceiling Mount Brackets. Ceiling Mount Brackets can be mounted at any position along width of the track. Wall Mount Brackets are available in two configurations:
- a. Wall Mount Brackets, Adjustable 3 1/2" to 4 1/2": Select these brackets to mount a single rod in cases in which you do not need to clear any other items or obstructions behind the rod.
- b. Wall Mount Brackets, Double Rod: Select these when you are mounting two rods (one in front of the other), or in the cases of a single rod where additional rear-clearance is needed.
- 6. Color: Kirsch Architrac rods are available in White, Gray, Bronze, or Black.
×
Kirsch Architrac 94001 Rod
Product Information
Kirsch Architrac is shipped to you fully assembled. Rods exceeding 93" in Length will be spliced for shipping. If you prefer that your Rod not be spliced, please call us for a Freight Shipping Quote before placing your order. All Rods exceeding 192" must be spliced. Kirsch Architrac Series 94001 Rods can be manufactured to a Maximum Width of 32 ft. (360") and carry a maximum drapery weight of 80 pounds (corded) and 64 pounds (motorized). Below you will find additional Product Details and 10-Year Warranty information.
Size: 24" to 360" wide | up to 80lb Drapery Weight (Cord), up to 64lbs (Motorized)
Clearance: 3" to 6"
Draw: Split Draw, Left Draw, Right Draw
Availability: Usually Ships in 3 to 5 Business Days
Product Code: 94270H
Returns: Kirsch Architrac Rods are Custom Made and are Not Returnable
