Kirsch Wrought Iron 1" Collection
Selection Guide
The information below is designed to provide an explanation of the various products that are typically combined to create a complete/finished drapery rod.
-
An Important Note about Drapery Hardware Classification: Drapery Hardware is classified by each Collection's Rod or Pole Diameter. For example, if you are looking at the Kirsch 1" Wrought Iron Collection, that means that all of the items in that Collection are based upon, named for, and 'fit' a 1" diameter pole.
-

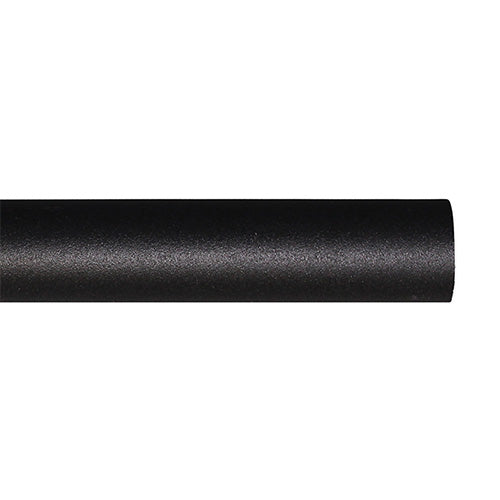

- 1. Pole: Wrought Iron Poles are available in 6-foot (72") and 7-foot, 9-inch (93") Lengths. Choose a Pole that is the same length or longer than you need. Wrought Iron poles can be cut-down with a pipe-cutting tool or a hacksaw. If you need a longer pole, Wrought Iron Poles can be joined with the Wrought Iron Internal Splice. Note that a Bracket must be placed directly under each point where Poles are Spliced.

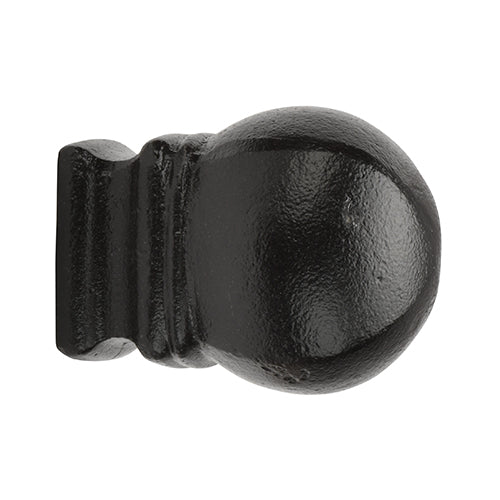

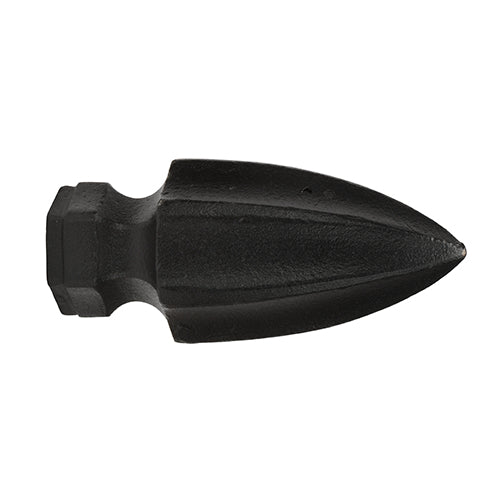

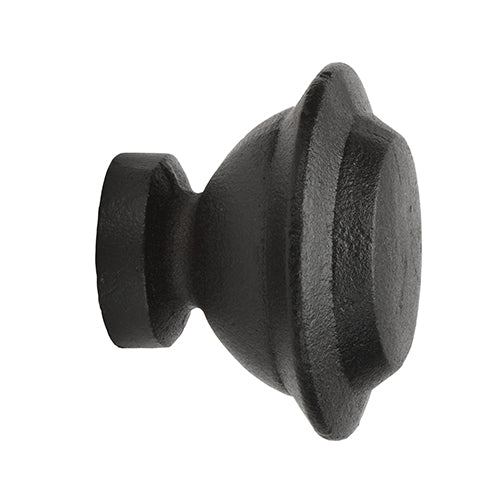

- 2. Finials: All Wrought Iron Finials are sold in Pairs and include Finial Plugs. At the time of installation (and after any cut-downs), Finial Plugs are pressed into each end of the Pole, then the Finials are 'screwed-in.'
-

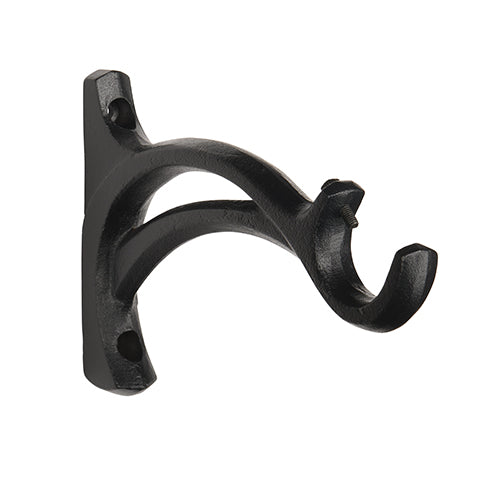

3. Brackets: Wrought Iron offers five Bracket options. The number and style of Brackets you need depends on your application. Generally, two Brackets are sufficient for a 6-foot Pole, and three are sufficient for a 7-foot 9-inch Pole. 'Return', as noted below, is the distance between the center-line of a rod seated in a bracket and the wall:

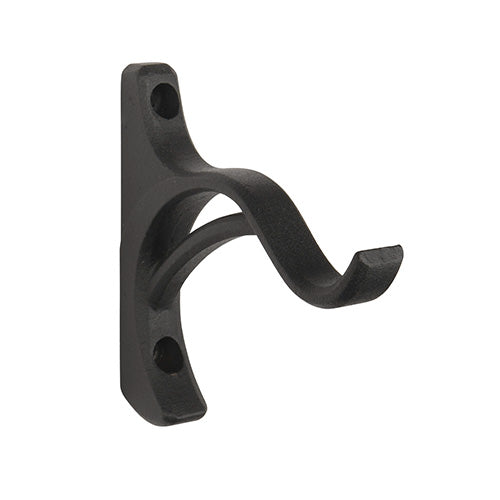

- a. 3 1/2" Return Bracket: The 'standard' Bracket, suitable for most applications.

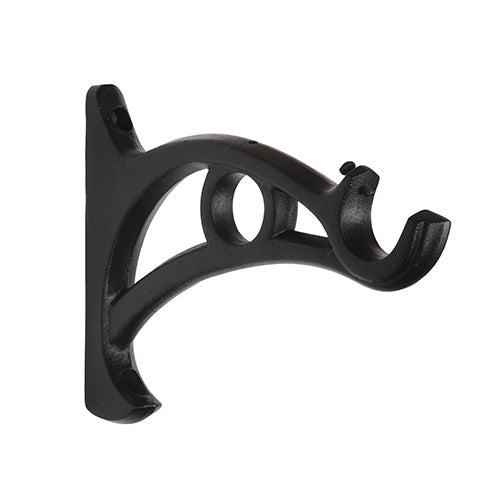

- b. 5 3/8" Return Bracket: This 'longer' Bracket is well-designed for Grommet panels and for those applications where additional clearance is necessary.
- c. Double Bracket: For a two-pole solution, one in front of the other. The Double Bracket has a 3 1/2" Return for the Back Pole, and a 6 1/2" Return for the Front Pole.
- d. 3 1/2" Return Bypass Bracket: For longer poles where additional support is needed, but in a manner that does not impede drapery ring travel. The Bypass Bracket, along with the C Ring, allows you to place a bracket anywhere along a pole's width. This bracket is typically used with longer one-way panels, or on very wide windows where a number of Poles have been joined with a splice.
- e. Inside Mount Sockets: Allow you to mount a Wrought Iron Pole between two facing walls.

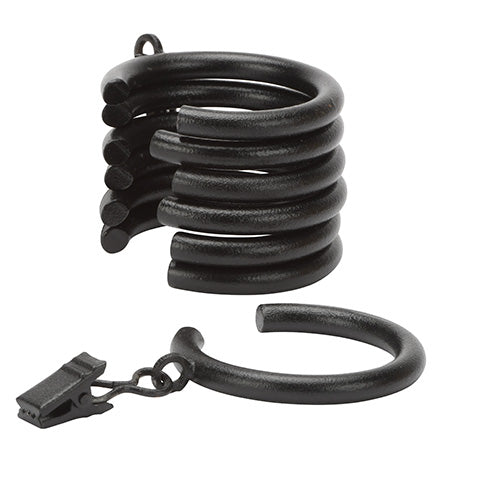

- 4. Rings: Wrought Iron offers 'Regular' Rings and 'C-Rings' Rings. C-Rings are Bypass Rings, which "pass-over" a Wrought Iron Bypass Bracket. The combination of C-Rings and Bypass Brackets allows you to place a bracket in a position drapery travel would prevent with standard rings and brackets.

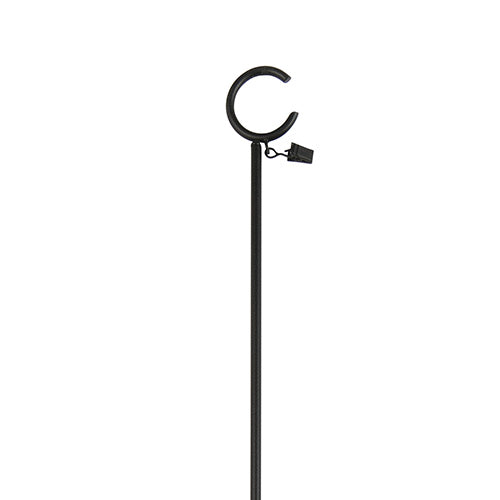

- 5. Specialty Products: Wrought Iron offers Swivel Sockets and Batons. Swivel Sockets join Wrought Iron Poles for bay window or corner window installations. The Swivel Socket is fully adjustable and rotates from a flat position to ninety degrees. Note that a Bracket must be placed under the Pole on each side of a Swivel Socket. The Wrought Iron Baton, if desired, is 36" Long and is topped with a C-Ring.
×
Kirsch Wrought Iron 1" Collection
Product Information & Warranty
Kirsch Wrought Iron is strong, versatile, and easy to work with. Wrought Iron is an ideal solution for corner and bay windows, and other complicated applications. Below you will find the Kirsch 1" Wrought Iron Brochure and 10-Year Warranty information.
-
Kirsch 1" Wrought Iron Pole
Regular price From $69.00Regular priceUnit price per -

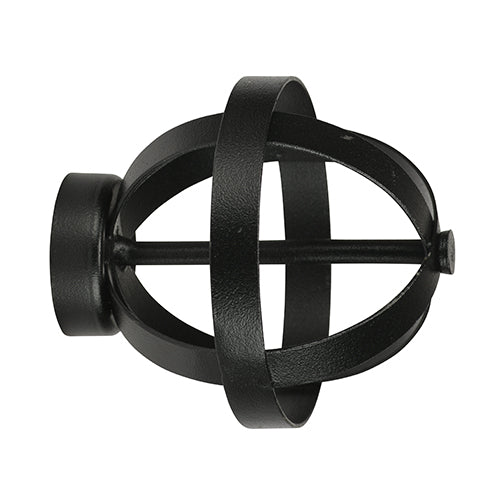

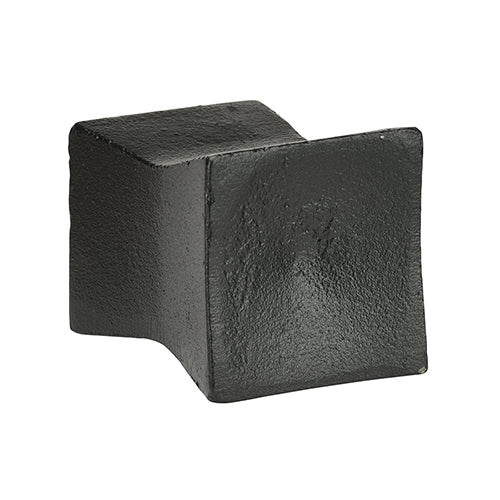

Kirsch 1" Wrought Iron Axiom Finial
Regular price $66.76Regular priceUnit price per -
Kirsch 1" Wrought Iron Darby Finial
Regular price $66.76Regular priceUnit price per -
Kirsch 1" Wrought Iron Lincoln Finial
Regular price $66.76Regular priceUnit price per -

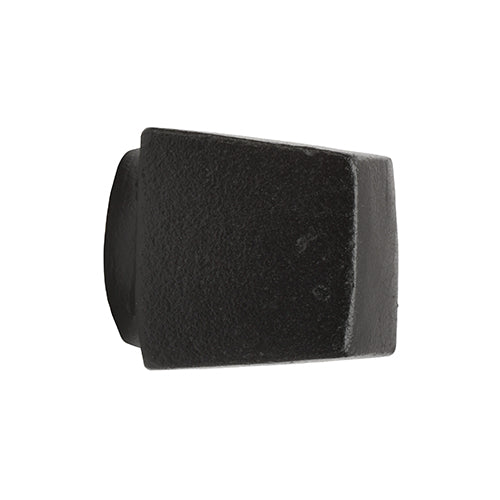

Kirsch 1" Wrought Iron Otto Finial
Regular price $66.76Regular priceUnit price per -

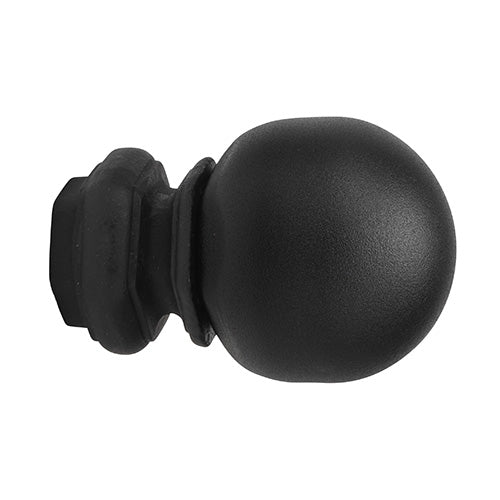

Kirsch 1" Wrought Iron Pedestal Ball Finial
Regular price $66.76Regular priceUnit price per -
Kirsch 1" Wrought Iron Ponce Finial
Regular price $66.76Regular priceUnit price per -
Kirsch 1" Wrought Iron Petite Faucet Finial
Regular price $43.36Regular priceUnit price per -
Kirsch 1" Wrought Iron Petite Modern Ball Finial
Regular price $43.36Regular priceUnit price per -

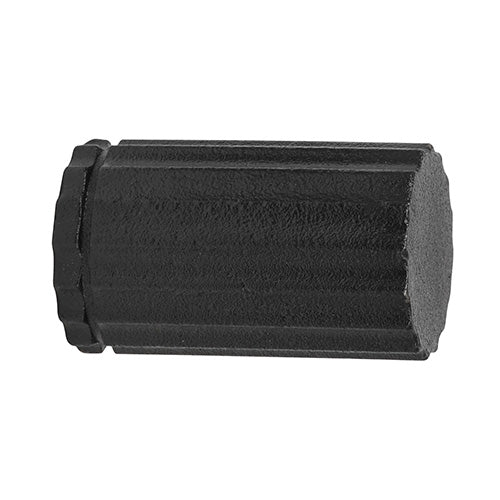

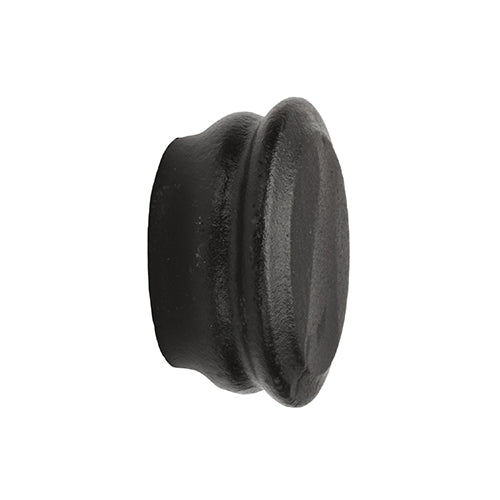

Kirsch 1" Wrought Iron Endcap
Regular price $25.66Regular priceUnit price per -

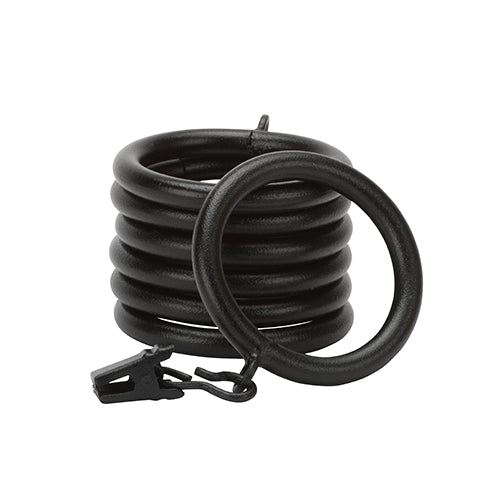

Kirsch 1" Wrought Iron Rings
Regular price $33.43Regular priceUnit price per -
Kirsch 1" Wrought Iron C-Rings
Regular price $35.55Regular priceUnit price per -

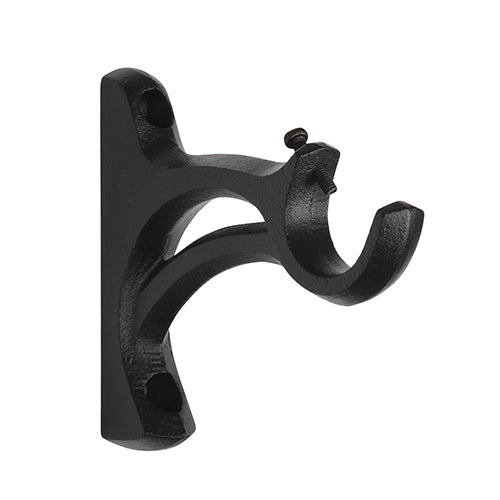

Kirsch 1" Wrought Iron 3 1/2" Return Bracket
Regular price $20.10Regular priceUnit price per -
Kirsch 1" Wrought Iron 3 1/2" Return Bypass Bracket
Regular price $20.10Regular priceUnit price per -
Kirsch 1" Wrought Iron 5 3/8" Return Bracket
Regular price $24.48Regular priceUnit price per -
Kirsch 1" Wrought Iron Double Bracket
Regular price $31.21Regular priceUnit price per -

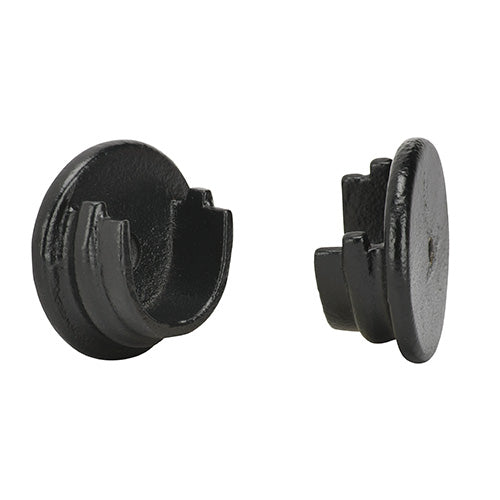

Kirsch 1" Wrought Iron Inside Mount Socket
Regular price $28.96Regular priceUnit price per -

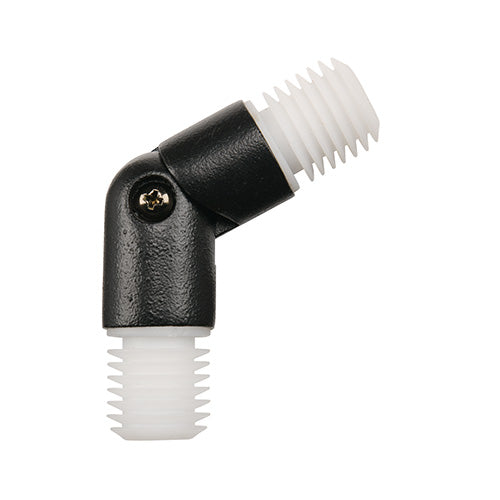

Kirsch 1" Wrought Iron Swivel Socket
Regular price $28.96Regular priceUnit price per -
Kirsch 1" Wrought Iron 36" Baton
Regular price $35.55Regular priceUnit price per -

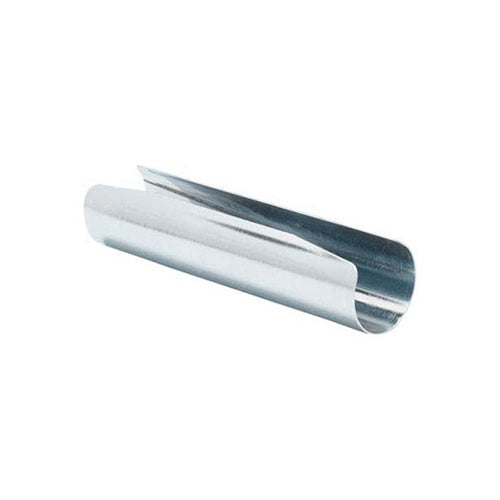

Kirsch 1" Wrought Iron Internal Splice
Regular price $12.32Regular priceUnit price per -

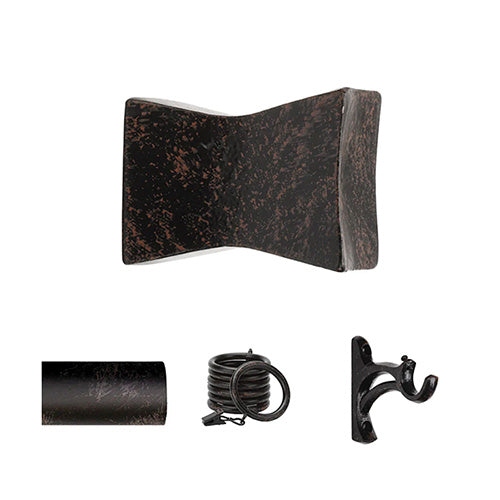

Kirsch Wrought Iron 1" Drapery Hardware Set
Regular price From $0.00Regular priceUnit price per
